Temperature & Operating Conditions
Chilled, frozen, blast-freezing and deep-freeze applications differ in temperature, humidity and use, requiring specific thicknesses and details.
-50°CDeep-Freeze ConditionsTEMPERATURE
COLD CHAIN SOLUTIONS
COLD CHAIN
ENVELOPE SYSTEM
ENVELOPE SYSTEM
High-Performance PIR/PUR Cold-Chain Envelopes
Specification for food, pharmaceutical and logistics cold chains, based on temperature, energy, fire, airtightness and hygiene requirements.
More Than an Insulated Box
Long-term cold-store performance depends on continuous insulation, airtightness, vapor control, door sealing and floor frost-heave protection—not panel conductivity alone.
Insulation & Energy Use
Evaluate temperature differences, door cycles, refrigeration load and thermal bridges for long-term performance.
≤0.022W/(m·K)THERMAL
Continuous Moisture & Vapor Control
Control vapor migration to reduce condensation, ice and concealed moisture at joints, openings and transitions.
ContinuousVapor BoundaryVAPOUR
Hygiene & Frequent Maintenance
Select facings, trims and impact protection for stored goods, cleaning, logistics and maintenance.
LifecycleOperational SuitabilityHYGIENE

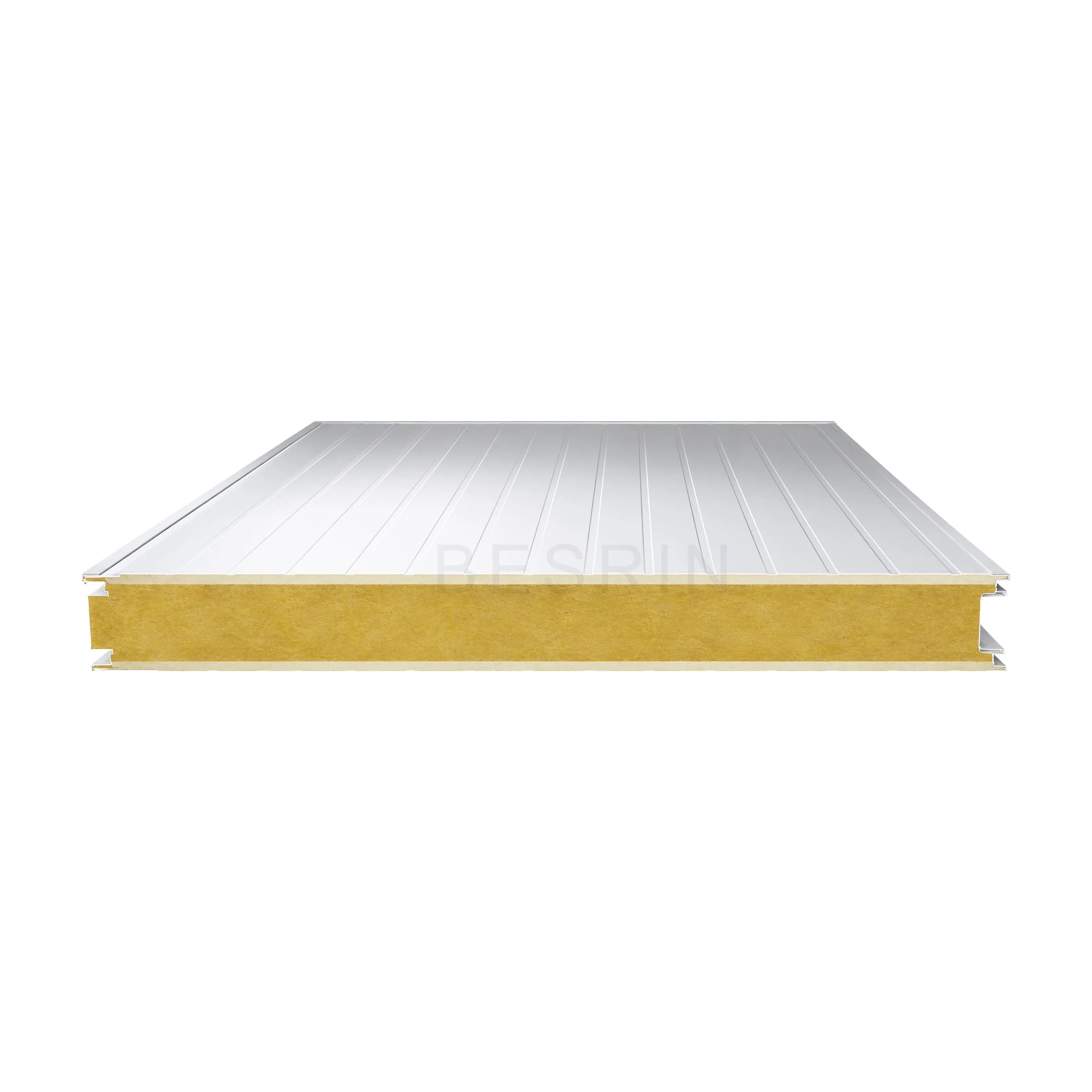

CryoCore™ Cold-Chain Panels
High Performance at Low Temperatures
Continuously bonded PIR/PUR rigid foam and metal facings, with precise joints, seals and fixings for stable thermal and vapor boundaries.
- Thicknesses for chilled, frozen, blast-freezing and deep-freeze conditions
- Four-sided joints or cam locks support assembly and airtightness
- Coated steel, stainless steel and cleaning-compatible finishes
- Coordinated wall, ceiling, door and floor details
CryoCore™ High-Performance PIR/PUR Envelopes
| Parameter | PIR Cold-Chain Panels (Preferred) | PUR Cold-Chain Panels (Optional) |
|---|---|---|
| Core | Rigid polyisocyanurate foam | Rigid polyurethane foam |
| Core Density | 38–45 kg/m³ | 38–42 kg/m³ |
| Reaction to Fire | Class B1 (GB 8624) | Class B2 (GB 8624) |
| Thermal Conductivity λ | ≤0.022 W/(m·K) | ≤0.022 W/(m·K) |
| Typical Thickness | 75 / 100 / 120 / 150 / 200 mm | 75 / 100 / 120 / 150 / 200 mm |
| Service Temperature | -50°C to +110°C | -30°C to +80°C |
| Temperature Applications | Chilled / Frozen / Blast freezing / Deep freeze | Chilled / Conventional frozen storage |
| Panel Joints | Four-sided tongue-and-groove / Cam locks | Four-sided tongue-and-groove / Cam locks |

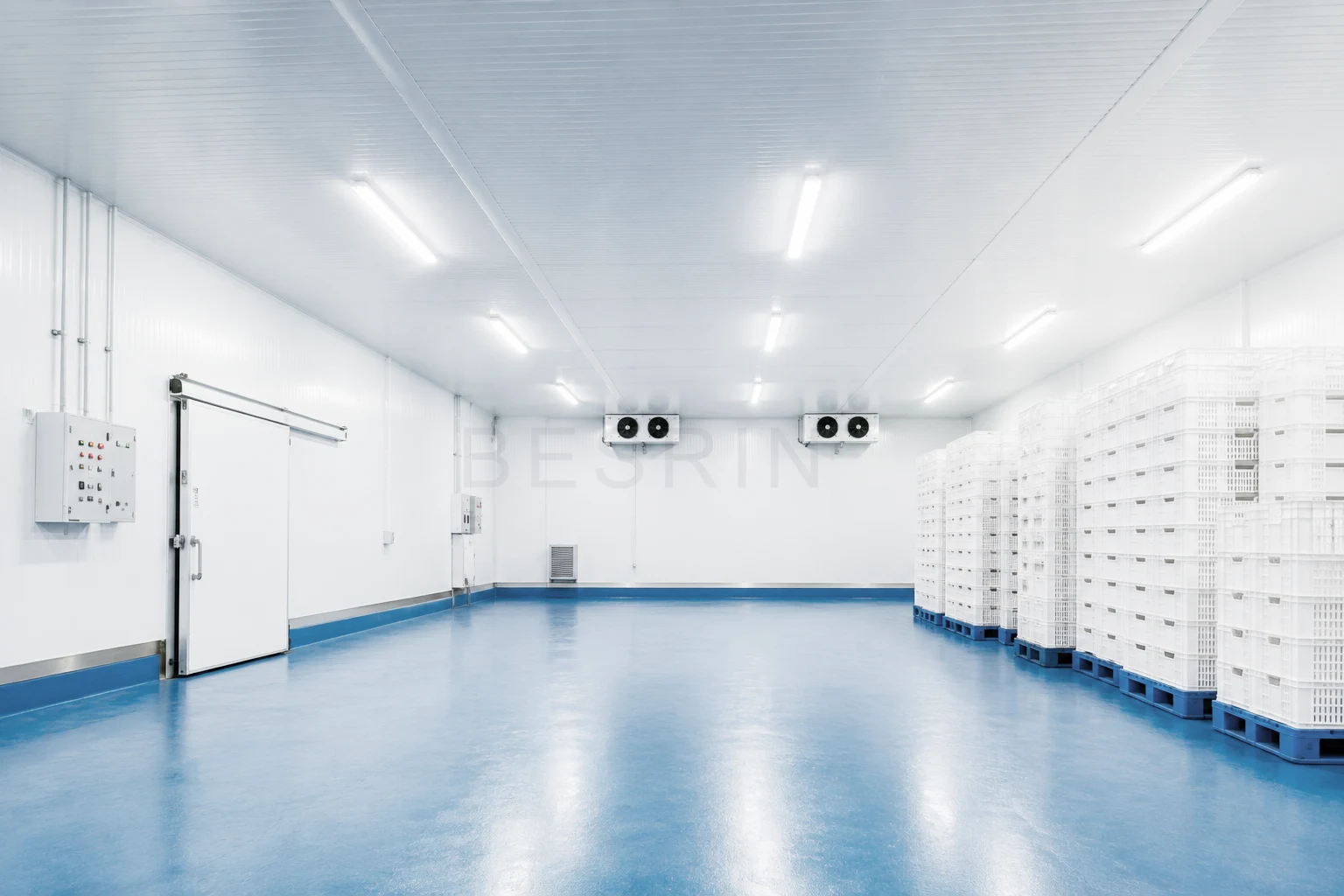

Applications
Walls, ceilings, cold-store doors and low-temperature details form a continuous, easy-clean cold-chain environment.

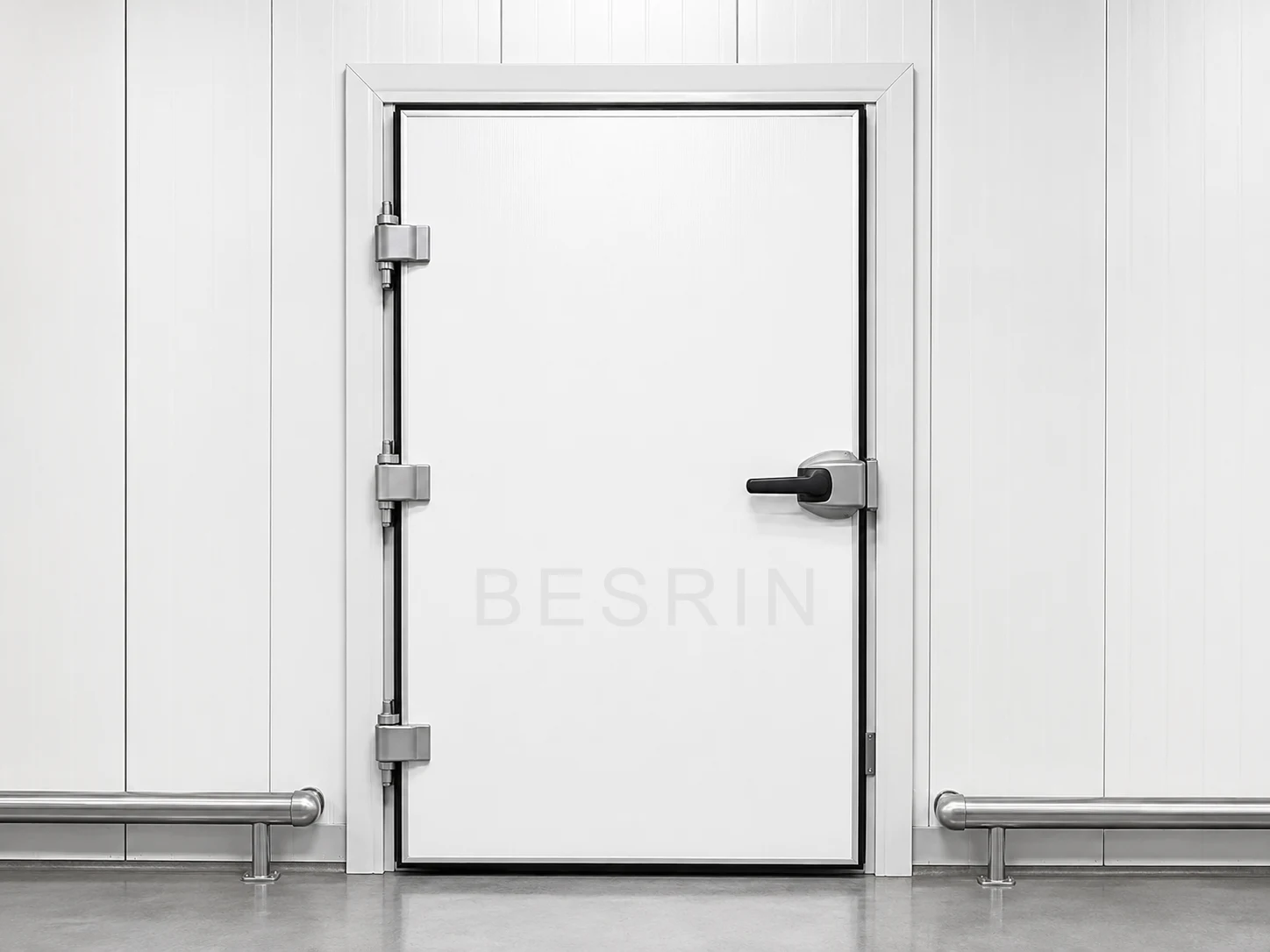

Cold-Store Doors & Windows
Cold-store doors combine insulation, thermal breaks, perimeter sealing, operating frequency and logistics safety.
Low-Temperature Opening Solutions
Choose sliding, hinged or high-speed doors for storage temperature, opening size and personnel or forklift traffic. Coordinate door insulation, frames, seals, floor interfaces and hardware as one opening system.
Stable InsulationInsulated leaves and thermally broken frames reduce heat loss at openings.
Perimeter AirtightnessContinuous seals and controlled compression limit cold-air leakage and frost.
High-Frequency AccessMatch opening type and speed to personnel, forklifts and goods movement.
Safety & MaintenanceProvide escape mechanisms, visibility, impact protection and replaceable wear parts.
